The part that makes a hole in a wall legal

Wall sleeves, compared on length, diameter and insulation

A wall sleeve — a Wanddurchführung — is the piece that carries the pipe through a wall into the chimney, and it exists because the pipe itself may not touch the masonry. Three figures decide. The internal diameter matches the pipe. The sleeve length must exceed the thickness of the wall it crosses, which sounds obvious and is the most common return on this shelf: a 25 cm sleeve in a 36 cm wall is a part that cannot be fitted. And the insulation: single-wall sleeves are meant for masonry, double-wall and insulated sleeves exist for walls with combustible material in them, and the two are not interchangeable whatever the diameters say. Then the rosette, the plate that covers the opening on the room side, which is cosmetic in appearance and structural in effect — it is what stops the sleeve being pushed further in. Listings state its outer diameter, and a rosette too small for a rough opening is a second trip. Finally the material and finish, usually painted steel to match the pipe, occasionally stainless for the run inside the masonry. We compare diameter, depth, material, construction, pipe acceptance, retention, temperature and certification.

These parts, set out figure by figure

1.

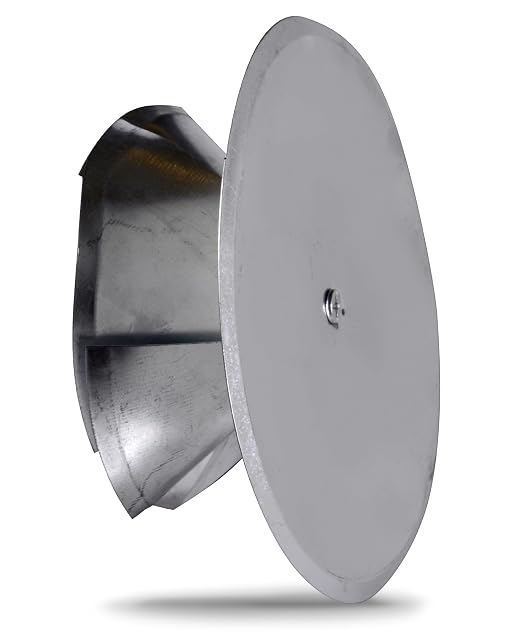

   FIREFIX Chimney Opening Cover, to Ø 160 mm

   Not a sleeve but a blanking cap — an expanding funnel with insulation, for a chimney opening that is no longer used.

   Diameter

   Fits openings up to Ø 160 mm · A screw turns to widen or narrow the holders

   Depth

   The maker does not state it.

   Material

   Galvanised steel sheet

   Construction

   Included, stated to protect wallpaper from heat discolouration

   Pipe acceptance

   The maker does not state it.

   Retention

   Covers an unused chimney connection opening · An expanding funnel, stated to keep the cover firmly seated while remaining removable · Stated removable at any time

   Temperature

   Not published

   Certification

   The maker does not state it.

   Amazon reference

   B01N48J7MZ (one reference across 5 Amazon marketplaces)

   EAN

   4017537450754

   • Adjustable across a range rather than made to one opening size
   • The insulation is explained — it protects the wallpaper from heat marks
   • It closes an opening; it does not connect an appliance to one

   Best for: An old chimney breast with a second opening nobody uses, where a bare hole is draughty and ugly

   Check price on Amazon
2.

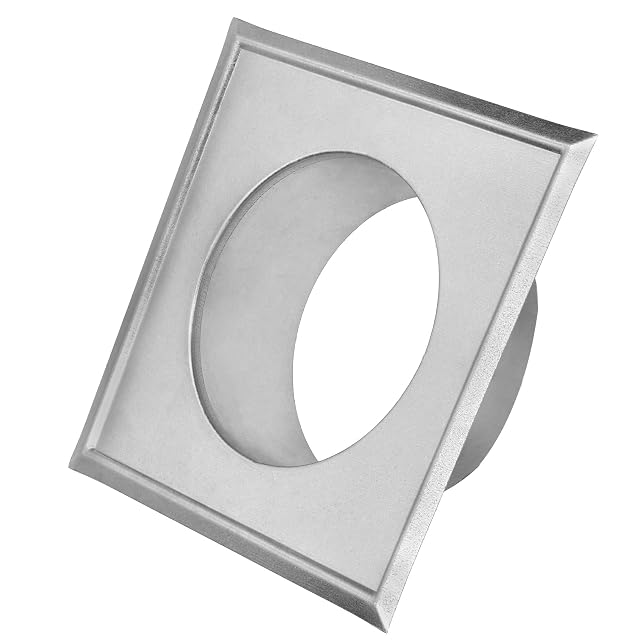

   KOTARBAU Galvanised Pipe Rosette, Ø 105 mm

   A decorative wall rosette with internal embossings to grip the pipe — 162 mm square, 130 grams, fully dimensioned.

   Diameter

   Ø 105 mm

   Depth

   162 × 162 mm · 51 mm · A shaped outer rim, stated to sit tight and even against the wall

   Material

   Galvanised sheet, stated resistant to damp and to changing temperatures

   Construction

   The maker does not state it.

   Pipe acceptance

   The maker does not state it.

   Retention

   Covers the pipe and the edge of a wall opening · Internal embossings, stated to grip the flue firmly

   Temperature

   0.13 kg

   Certification

   The maker does not state it.

   Amazon reference

   B0CL6GV2TL (one reference across 5 Amazon marketplaces)

   EAN

   5904994042501

   • Publishes every dimension including the weight, which nothing else on this shelf does
   • Internal embossings, so it grips the pipe rather than sliding along it
   • A rosette is trim: it covers a gap and seals nothing

   Best for: Finishing the wall around a pipe that already passes through a proper sleeve

   Check price on Amazon
3.

   rg-vertrieb Twin-Wall Sleeve, Ø 180 mm

   The only listing here that explains why a wall sleeve is double-walled: it absorbs the pipe’s expansion and keeps the chimney from cracking.

   Diameter

   Ø 180 mm

   Depth

   The maker does not state it.

   Material

   2 mm steel sheet · Solvent-free Senotherm environmental lacquer in black, stated to cure almost odour-free on first firing

   Construction

   Twin-wall, stated to absorb the pipe’s thermal expansion and protect the chimney from cracks · Mortared permanently into the chimney cheek with fire cement, stated

   Pipe acceptance

   All solid fuels

   Retention

   The maker does not state it.

   Temperature

   Stated soot-fire resistant

   Certification

   EN 1856-2 / DIN 1298, approved to 600 °C (T600)

   Amazon reference

   B07LBWGZZJ (one reference across 2 Amazon marketplaces)

   EAN

   5902808419204

   • Explains the mechanism of a twin-wall sleeve, which no other listing on this shelf does
   • States plainly that it is mortared in permanently, rather than implying a push fit
   • Once mortared in, it is not coming out without breaking the chimney cheek

   Best for: A masonry chimney being connected properly, where the sleeve is going in once and staying

   Check price on Amazon
4.

   H&M Germany Twin-Wall Sleeve, Ø 150 mm, 500 mm

   Half a metre of shortenable sleeve that takes a pipe at either end — and the only listing here to say when this part is needed at all.

   Diameter

   For stove pipe of 150 mm diameter · Shortenable, stated · Approximately 160 mm, continuous

   Depth

   Approximately 500 mm — the deepest on this shelf

   Material

   The maker does not state it.

   Construction

   Double-shelled

   Pipe acceptance

   Takes stove pipes of different inner diameters — the drawn end or the wide end can be used

   Retention

   The maker does not state it.

   Temperature

   Stated needed ONLY on masonry chimneys · Not published

   Certification

   The maker does not state it.

   Amazon reference

   B08C36SXHN (one reference across 2 Amazon marketplaces)

   EAN

   4893253155582

   • States the condition under which this whole category is needed: masonry chimneys only
   • Shortenable, so one part suits walls of different thicknesses
   • No temperature figure and no standard named

   Best for: A thick masonry wall where a shorter sleeve would not reach through to the flue

   Check price on Amazon
5.

   Ferro Lux Wall Sleeve with Centring Spring and Rosette, Ø 120 mm

   A stainless sleeve supplied with its rosette and a centring spring, CE approved to 600 °C continuous with a twenty-five year warranty.

   Diameter

   Ø 120 mm

   Depth

   The maker does not state it.

   Material

   Stainless steel

   Construction

   A centring spring and a wall rosette · Push-fit through pre-formed drawn ends

   Pipe acceptance

   Regular solid-fuel appliances — untreated wood, coke, peat, coal — and stoves

   Retention

   The maker does not state it.

   Temperature

   The maker does not state it.

   Certification

   CE certified and approved to a continuous operating temperature of 600 °C · Made in Germany · 25 years manufacturer warranty

   Amazon reference

   B07CDCNHW8 (one reference across 1 Amazon marketplace)

   EAN

   4057054080430

   • Supplies the rosette with the sleeve, so the finish is not a second purchase
   • A centring spring, which is what holds the pipe square in the sleeve
   • No length published, which decides whether it reaches through the wall

   Best for: A 120 mm connection done in one order, with the rosette and the centring already in the box

   Check price on Amazon
6.

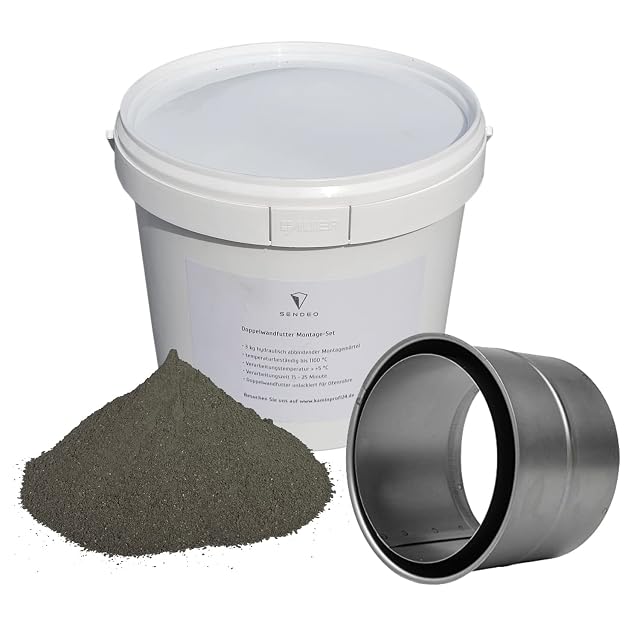

   SENDEO Twin-Wall Sleeve Mounting Set, Ø 150 mm

   A bare sleeve with 2.5 kg of ceramic-setting mortar — and the only listing in this catalogue to publish a mortar’s composition and its working window.

   Diameter

   The maker does not state it.

   Depth

   Ø 150 mm, 115 mm long, steel sheet DC01 / St12, temperature resistance 450 °C

   Material

   Calcium aluminates, CAS 65997-16-2, with mineral aggregates; grain 0–1.25 mm · Approximately 1.4 kg per m² per mm

   Construction

   A bare, unpainted twin-wall sleeve plus 2.5 kg of mounting mortar · Hydraulic-ceramic

   Pipe acceptance

   Sized for stove pipes of 2 mm wall thickness, stated

   Retention

   The maker does not state it.

   Temperature

   1,100 °C · Above +5 °C, with a working time of 15–25 minutes

   Certification

   The maker does not state it.

   Amazon reference

   B0C6FDT5LM (one reference across 4 Amazon marketplaces)

   EAN

   4255593608522

   • Publishes the mortar’s composition, grain size, setting type, working time and consumption
   • States the minimum working temperature, which is the only site condition on this shelf
   • A bare, unpainted sleeve, so the visible end will not match a painted pipe

   Best for: A masonry connection done properly in one go, in a room above five degrees

   Check price on Amazon
7.

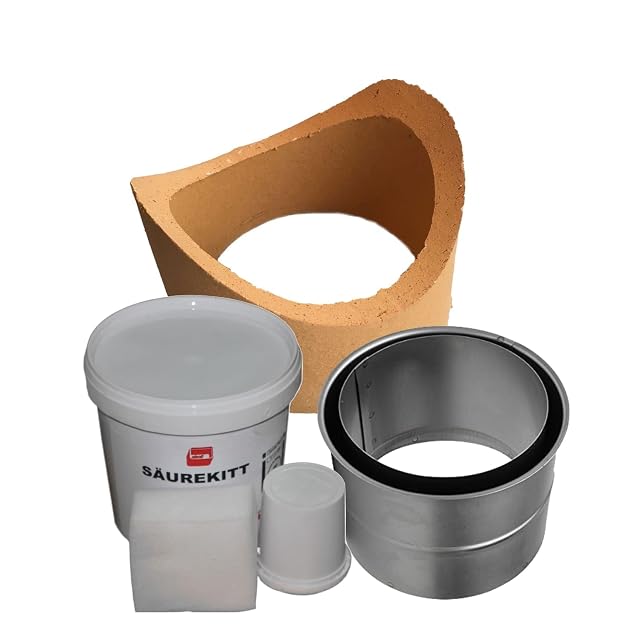

   Kaminbau Schulhauser Chimney Connection Set with Fireclay Stub

   A complete connection in one box: a 200 mm fireclay stub, a 150 mm sleeve, 1.5 kg of acid cement, a sponge and a measuring jug.

   Diameter

   The maker does not state it.

   Depth

   Fireclay, 200 mm inside diameter, approximately 8.5 cm long · Approximately 12 cm long, for a 150 mm flue connection

   Material

   1.5 kg of acid cement for chimney connections · Not published beyond fireclay for the stub

   Construction

   A sponge and a measuring jug included · A complete mounting set

   Pipe acceptance

   The maker does not state it.

   Retention

   The maker does not state it.

   Temperature

   Not published

   Certification

   Not named

   Amazon reference

   B00KQH8FMW (one reference across 4 Amazon marketplaces)

   EAN

   0651848112723

   • Includes the fireclay stub, which is the part of a masonry connection nobody thinks to order
   • A sponge and a measuring jug — the two things a cement job needs and nobody has to hand
   • Five features and no temperature, no standard and no material detail

   Best for: A masonry chimney being opened and connected from scratch, where the fireclay stub is part of the job
