Cast iron, a bar spacing, and a direction of burn

Fire grates, compared on spacing as much as on size

A grate holds the fuel above the ash so air can reach it from below, and it is the part that warps and burns away first on a stove used hard. Replacements are chosen on the dimensions — length, width, and the thickness that has to clear the ash pan below — and on one figure that decides how the fire behaves: the bar spacing. Wide spacing lets ash fall freely and lets small fuel fall with it; narrow spacing holds a bed of embers, which is what wood wants. That is the reason many wood stoves are sold without a grate at all, burning on a flat bed of ash, while every multi-fuel appliance has one — coal needs air from below and wood does not. The material is cast iron almost everywhere, and the figure that predicts life is the section thickness of the bars rather than the alloy name. Two mechanisms then divide the shelf: a fixed grate that is simply lifted out, and a riddling grate that rocks or rotates on a lever to drop ash without opening the door. The second is convenient and is one more moving part in the hottest place in the house. We compare dimensions, thickness, material, weight, type, temperature, ash and intended fit.

These parts, set out figure by figure

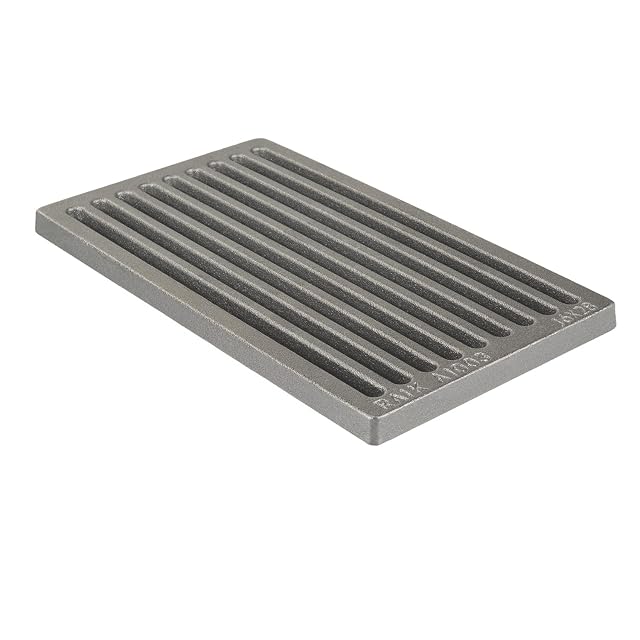

  1. A rectangular anthracite cast iron fire grate measuring 28.1 by 16.5 centimetres

    raik Cast Iron Fire Grate, 28 × 16 cm

    A narrow cast iron grate with a trapezoidal bar section, sized for small fireboxes and offered across a range of dimensions.

    Dimensions
    28.1 × 16.5 × 1.4 cm, stated · Trapezoidal, stated to give form stability and to locate the grate · Available in several sizes, stated to differ only in dimensions and weight
    Thickness
    The maker does not state it.
    Material
    Solid cast iron · Anthracite
    Weight
    Not published for this size
    Type
    None — stated as deliberate
    Temperature
    The maker does not state it.
    Ash
    The maker does not state it.
    Intended fit
    Stated for smaller or narrower fireboxes, as a spare part or a retrofit
    Amazon reference
    B0G2SVXNKC (one reference across 6 Amazon marketplaces)
    EAN
    4251773829305
    • The narrowest grate in this family, which is what a small firebox actually needs
    • Publishes all three dimensions including thickness, as maxima rather than nominals
    • No weight published for this size, where two listings in this family give one

    Best for: A narrow firebox where the wide 22 × 22 grates that dominate this shelf will not go in

    Check price on Amazon

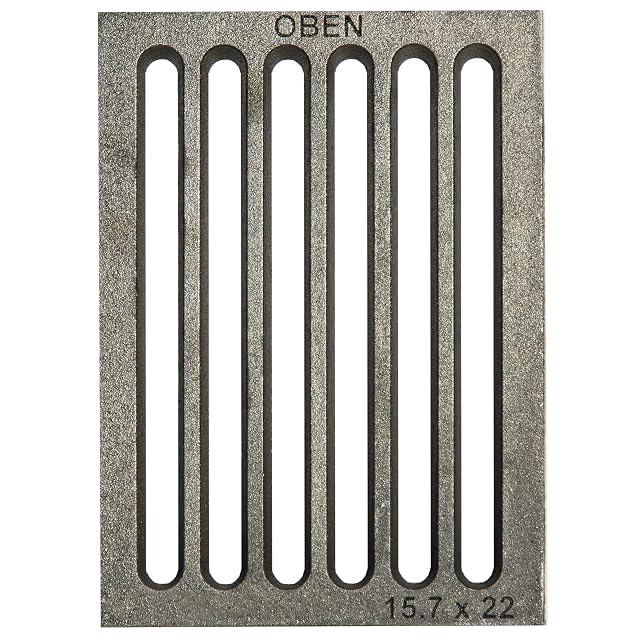

  2. A rectangular cast iron fire grate 16 by 22 centimetres with downward-tapering ribs

    ScarMaxx Cast Iron Fire Grate, 16 × 22 cm

    Cast iron with ribs tapered downwards so nothing jams — and the only listing on this shelf that tells you to leave room for expansion.

    Dimensions
    16 × 22 cm · Tapered downwards, stated to stop residue jamming in the openings
    Thickness
    13 mm
    Material
    Cast iron · Made in Europe, stated
    Weight
    2 kg
    Type
    The maker does not state it.
    Temperature
    The maker does not state it.
    Ash
    The maker does not state it.
    Intended fit
    Stated that cast iron expands in heat and the grate must have enough room · Wood stoves, kitchen ranges, garden grills, workshop stoves and fireplaces burning wood and coal
    Amazon reference
    B0CPLQ3XJG (one reference across 4 Amazon marketplaces)
    EAN
    5906058313015
    • The only listing in this family to warn that cast iron expands and to say the grate needs clearance
    • Publishes material, shape, weight, thickness and origin as a labelled set
    • No temperature figure, which only one listing in this family publishes

    Best for: Any cast iron grate replacement where the seat is tight and clearance has to be planned for

    Check price on Amazon

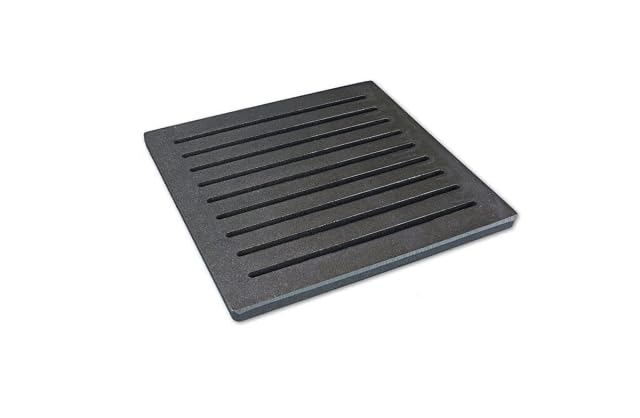

  3. A square cast iron fire grate measuring 22 by 22 centimetres and 12 millimetres thick

    GRILLROSTPROFI Cast Iron Fire Grate, 22 × 22 cm

    An aftermarket cast grate made to match a named manufacturer’s original — the only listing on this shelf that publishes a temperature.

    Dimensions
    Width 22 cm × length 22 cm × height 1.2 cm
    Thickness
    The maker does not state it.
    Material
    Cast iron, stated to be like the original · Stated recyclable and less energy-intensive to produce than other steels
    Weight
    Approximately 2.9 kg — the heaviest flat grate in this family
    Type
    The maker does not state it.
    Temperature
    Heat-resistant to approximately 600/700 °C — the only figure published here
    Ash
    Stated that embers are held well by the shape of the grate · Stated that the shape gives continuous air supply and easy ash fall-through
    Intended fit
    Listed for a named stove manufacturer, and stated to suit many stoves, ranges, tiled stoves and grills
    Amazon reference
    B07YLYQ2RM (one reference across 2 Amazon marketplaces)
    EAN
    4260290143757
    • The only listing in this family to publish a heat resistance figure at all
    • The heaviest flat grate here at 2.9 kg, in the common 22 × 22 format
    • The temperature is printed as 600/700 °C, which is two figures rather than one

    Best for: Replacing a worn original on a stove of the named make, in the most common grate size on this shelf

    Check price on Amazon

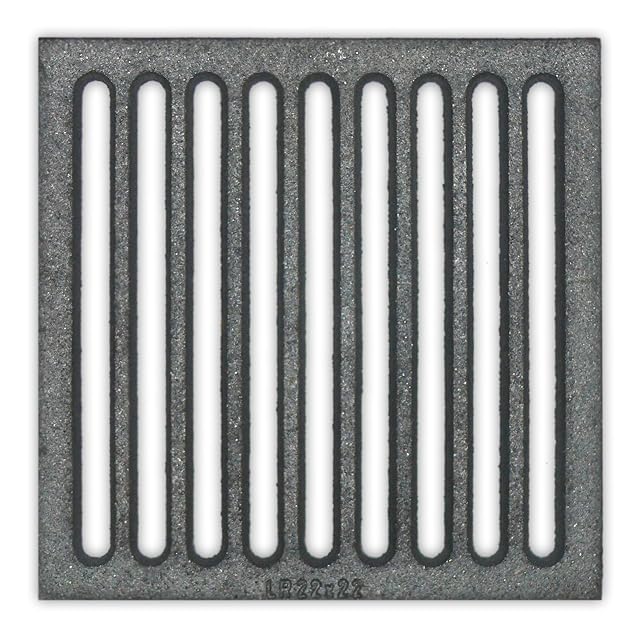

  4. A square cast fire grate measuring 22 by 22 centimetres lying flat

    L R Cast Fire Grate, 22 × 22 cm

    A cast grate in the shelf’s most common size, 22 × 22 cm, carrying exactly one published line of description and no thickness at all.

    Dimensions
    22 × 22 cm — the most common size in this family · Not published
    Thickness
    Not published
    Material
    Cast, from the title — the grade is not stated
    Weight
    Not published
    Type
    Flat-lying grate (Liegerost), from the title
    Temperature
    Not published
    Ash
    The maker does not state it.
    Intended fit
    One line: a flat-lying frame, 22 × 22 cm
    Amazon reference
    B0763NBYRF (one reference across 5 Amazon marketplaces)
    EAN
    0740450151425
    • The 22 × 22 cm format, which two other listings in this family also serve — the nearest thing here to a standard
    • A flat-lying grate, stated as such, so its orientation is at least unambiguous
    • One published feature in total, which repeats the size already in the title

    Best for: A 22 by 22 replacement where the old grate’s other dimensions are already known from the part itself

    Check price on Amazon

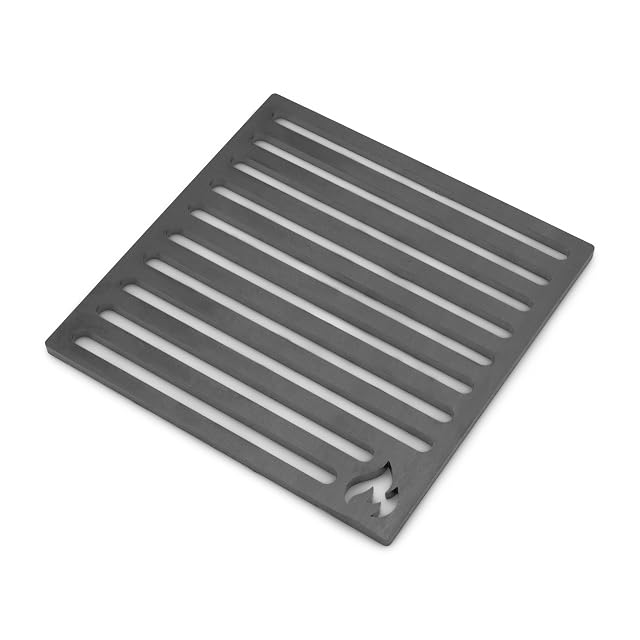

  5. A square stove grate cut from a single piece of 8 millimetre steel plate, 22 by 22 centimetres

    Grillrost.com Das Original Solid Steel Stove Grate, 22 × 22 cm

    Cut from one piece of 8 mm steel plate and sold on exactly that argument: no casting, so nothing to crack, and made in Germany.

    Dimensions
    22 × 22 cm
    Thickness
    The maker does not state it.
    Material
    One piece of 8 mm steel plate, stated — not cast · Stated absolutely break-proof because it is not a casting · Made in Germany by a family business, stated
    Weight
    Not published
    Type
    The maker does not state it.
    Temperature
    Not published
    Ash
    The maker does not state it.
    Intended fit
    Measure the old grate and choose the matching size; the maker states two grates can sometimes be combined · Fireplaces, stoves, tiled stoves, smokers, Swedish stoves and grills
    Amazon reference
    B076GPB7WG (one reference across 5 Amazon marketplaces)
    EAN
    4280001609433
    • The clearest material argument in this family, and it is a real one: steel does not crack the way cast iron does
    • Suggests combining two grates for an opening no single size covers
    • Steel warps rather than cracks, and the listing does not mention that trade at all

    Best for: A firebox that has already cracked one cast grate, or an opening that needs two grates side by side

    Check price on Amazon

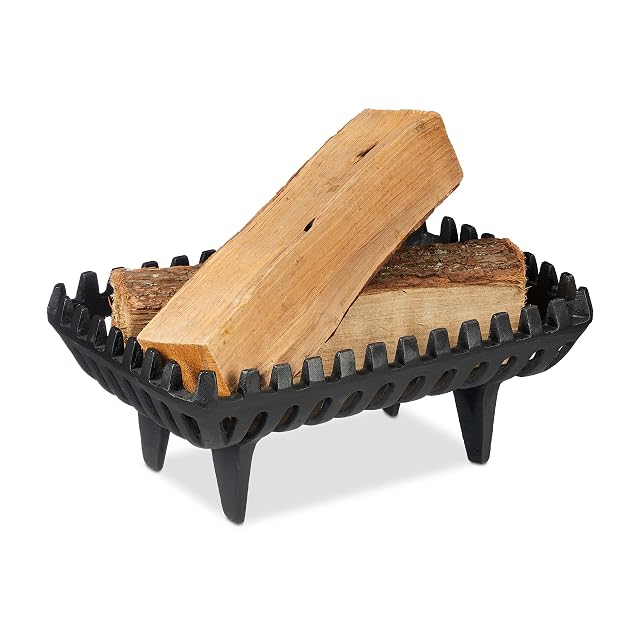

  6. A black cast iron standing fire grate on four legs, 37 centimetres wide and 15 centimetres high

    Relaxdays Standing Fire Grate with Legs, 37 × 26 cm

    Not a flat grate at all — a four-legged basket for an open fireplace, with a rim to stop logs rolling and room for an ash box beneath.

    Dimensions
    Height × width × depth, approximately 15 × 37 × 26 cm · 4 feet, stated to give better oxygen supply by lifting the wood off the hearth · Approximately 23 × 15 cm · Stated to stop firewood or briquettes sliding off and falling down
    Thickness
    The maker does not state it.
    Material
    Cast iron · Black
    Weight
    The maker does not state it.
    Type
    A standing fire grate on legs — not a flat grate that lies in a firebox
    Temperature
    The maker does not state it.
    Ash
    The legs are stated to allow an ash box to be used underneath
    Intended fit
    The maker does not state it.
    Amazon reference
    B0CMFMVF2C (one reference across 6 Amazon marketplaces)
    EAN
    4052025478100
    • Lifts the fire clear of the hearth, which is what an open fireplace needs and a flat grate cannot do
    • A rim around the bed, so a rolling log stays in the fire rather than on the floor
    • It is a different object from the six flat grates on this shelf and does not replace one

    Best for: An open fireplace or a large hearth where the fire needs lifting off the floor and an ash pan underneath

    Check price on Amazon

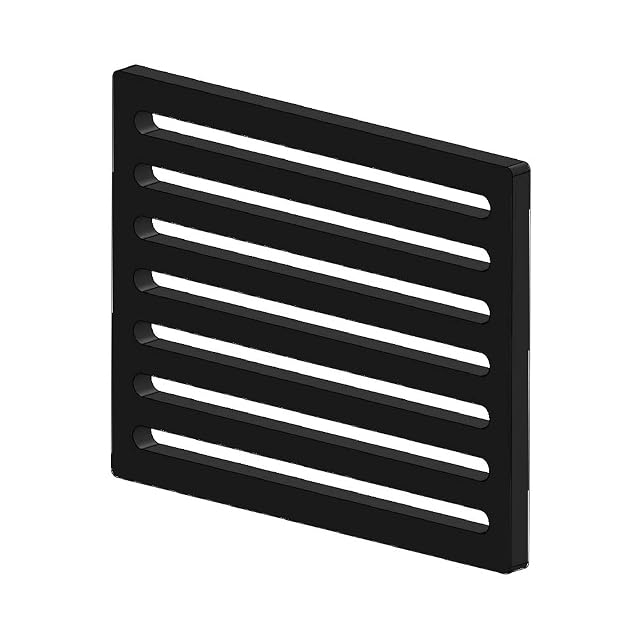

  7. A solid steel fire grate measuring 195 by 155 millimetres and 10 millimetres thick

    Feuerfest 123 GmbH Steel Fire Grate, 195 × 155 × 10 mm

    A solid steel grate listed against one manufacturer’s model range, with the instruction to compare it with the existing part repeated four times.

    Dimensions
    195 × 155 × 10 mm — given again as 19.5 × 15.5 × 1 cm
    Thickness
    The maker does not state it.
    Material
    Solid steel, stated fireproof and heat-resistant
    Weight
    Not published
    Type
    The openings are stated to support airflow under the fuel for an even burn
    Temperature
    Not published
    Ash
    Stated to fall through the openings into the ash box below
    Intended fit
    Listed for a named stove manufacturer, with a model overview included · Stated four times: compare the model, the dimensions and the shape with the existing grate before ordering
    Amazon reference
    B0D9HCSZKR (one reference across 6 Amazon marketplaces)
    EAN
    4262465421165
    • Publishes its dimensions twice in two units, and tells the buyer to check them against the old part
    • Steel rather than cast iron, so it will not crack if the seat is tight
    • The most expensive flat grate on this shelf

    Best for: A small stove of the named make, where the grate has to be right first time

    Check price on Amazon

This category at a glance

  • Highest Amazon reference in this category: L R MOMO FING (B0763NBYRF (one reference across 5 Amazon marketplaces)).
  • Highest Dimensions in this category: Feuerfest 123 GmbH Variante_Kaminrost_Justus (195 × 155 × 10 mm — given again as 19.5 × 15.5 × 1 cm).

Every model compared

Only the specifications at least four models out of five state. A column that is more empty than full compares nothing.

ModelPriceAmazon referenceAshDimensionsIntended fit

Sources and method

Specifications: manufacturer sheets and Amazon product pages. Prices and availability: Keepa. No product on this site has been physically tested.

Most recent revision in this category: September 22, 2026.
