An air gap, held at a published distance

Pipe heat shields, compared on the gap they hold

A pipe heat shield is a second skin around the flue pipe, held away from it so that a layer of still air does the insulating. It exists for one purpose: to let a pipe run closer to something combustible than the bare pipe may. Everything about the product follows from that. The pipe diameter it fits and the shield diameter together give the air gap, which is the working figure — a shield clamped tight against the pipe insulates nothing. The coverage length decides whether the protected section actually spans the distance at risk, and shields are sold both as full sleeves and as one-sided radiation plates for the case where only one wall is close. Then the figure that is the entire point and that only the serious makers publish: the reduced clearance the shielded pipe is declared for, against the unshielded distance the appliance requires. Without that number the product is decoration. The finish matches the pipe, and on shields it is more than cosmetic — a shield is the hottest visible surface in the room after the stove itself. We compare diameter, length, wall thickness, material, coating, reduced clearance, temperature and fixing.

These parts, set out figure by figure

1.

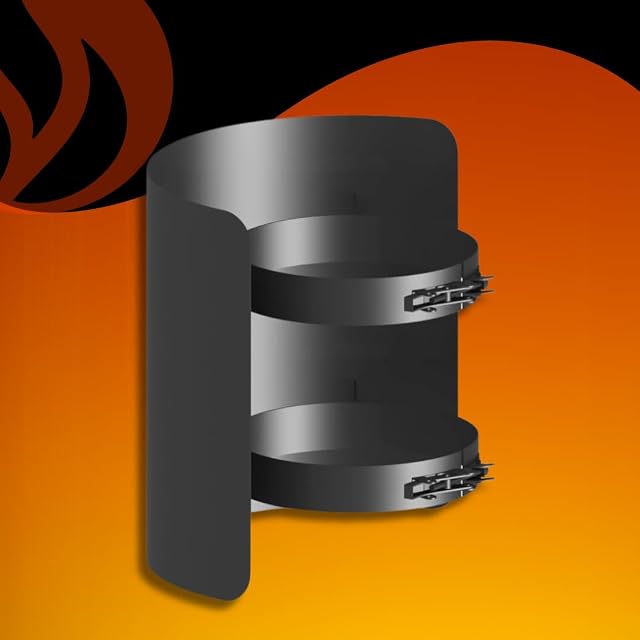

   JimmiOne Radiation Shield, 250 mm, Ø 150 mm

   A 250 mm shield in 1 mm DC01 steel with a Senotherm finish to 600 °C — TÜV and CE certified, with a twenty-five year warranty.

   Diameter

   Ø 150 mm, with 120 to 200 mm offered

   Length

   250 mm

   Wall thickness

   1.0 mm — the thinnest in this family

   Material

   Steel sheet DC01 (St12)

   Coating

   Senotherm lacquer, stated heat-resistant to 600 °C

   Reduced clearance

   Not stated on this listing

   Temperature

   The maker does not state it.

   Fixing

   TÜV and CE certified, stated · 25 years, stated

   Amazon reference

   B0FHBGWJPS (one reference across 6 Amazon marketplaces)

   EAN

   4255892200069

   • Names the steel grade, which only one other listing on this shelf does
   • A twenty-five year warranty, matched by one other listing here
   • One millimetre, where three listings here publish 2.0 mm

   Best for: A straight 250 mm run of pipe where the shield is wanted and the clearance figure has already been established

   Check price on Amazon
2.

   Ferro Lux Radiation Shield, 250 mm, Ø 150 mm

   A push-fit shield with drawn ends so elements chain together — CE-approved to a continuous operating temperature of 600 °C.

   Diameter

   150 mm

   Length

   250 mm

   Wall thickness

   Not published

   Material

   German manufacture, stated

   Coating

   The maker does not state it.

   Reduced clearance

   Stated for regular solid-fuel appliances — untreated wood, coke, peat, coal — and stoves

   Temperature

   CE certified and approved to a continuous operating temperature of 600 °C, stated

   Fixing

   Pre-formed drawn push-fit ends, so elements connect to one another · 25 years manufacturer warranty, stated

   Amazon reference

   B01CO5HPU6 (one reference across 4 Amazon marketplaces)

   EAN

   4057054080546

   • Drawn push-fit ends, so several shields chain to cover a long run
   • States a continuous operating temperature rather than a peak
   • No wall thickness published, where four listings in this family give theirs

   Best for: A long straight run where two or three shields have to join up cleanly

   Check price on Amazon
3.

   Tecnovis Pellet Stove Radiation Shield, 250 mm, Ø 80 mm

   The only pellet-sized shield on this shelf — 80 mm — and the only listing that explains how a shield actually grips the pipe.

   Diameter

   Ø 80 mm — a pellet stove flue size, and the only one on this shelf

   Length

   250 mm

   Wall thickness

   The maker does not state it.

   Material

   A German brand manufacturer, stated

   Coating

   Heat-resistant Senotherm lacquer, stated for use in living and visible areas

   Reduced clearance

   Stated to protect the near surroundings of the flue pipe, and that a shield allows the distance to combustible components to be reduced · Soot-fire resistant and insensitive to moisture

   Temperature

   Pressure-tight to 200 Pa, stated

   Fixing

   Fitted over the existing flue pipe and held by clamps inside the shield, stated

   Amazon reference

   B0F5HQF996 (one reference across 5 Amazon marketplaces)

   EAN

   4057054126763

   • The only listing in this family that describes how the shield is held — internal clamps on the existing pipe
   • An 80 mm size, which pellet appliances need and nothing else on this shelf offers
   • Does not publish the reduced clearance figure itself

   Best for: A pellet stove with an 80 mm flue passing close to something that should not get hot

   Check price on Amazon
4.

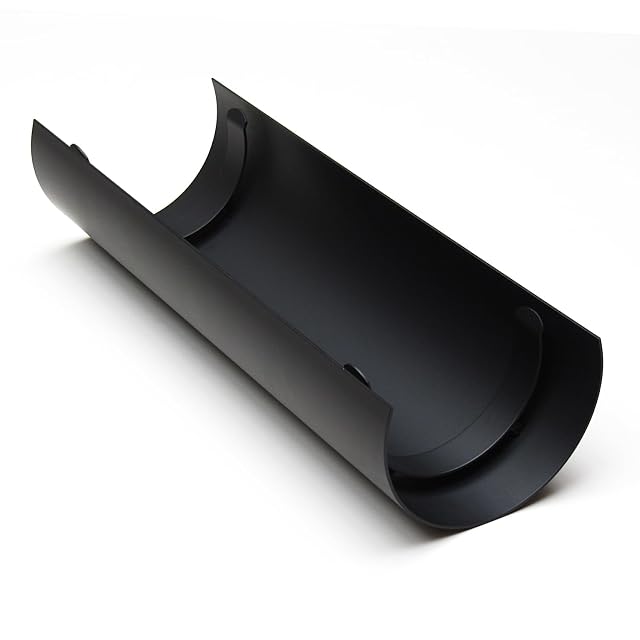

   raik Thermal Shield, 460 mm, Ø 150 mm

   Four hundred and sixty millimetres of 2 mm steel, stated to bring the clearance down to 400 mm — and the only listing to explain the first-firing smell.

   Diameter

   Ø 150 mm

   Length

   460 mm

   Wall thickness

   The maker does not state it.

   Material

   High-quality steel, 2 mm wall thickness

   Coating

   Baked-on Senotherm, stated hard-wearing, heat-resistant, abrasion-resistant and to prevent odour on first firing

   Reduced clearance

   Stated to reduce the required minimum distance to combustible components to 400 mm · Stoves, fireplace inserts, wood boilers and wood gasifiers

   Temperature

   Temperature-resistant to 600 °C

   Fixing

   Simply pushed onto a matching Ø 150 mm flue pipe

   Amazon reference

   B00TU8576A (one reference across 3 Amazon marketplaces)

   EAN

   4260405761128

   • Publishes the clearance figure the whole category exists for
   • Two millimetres of steel over 460 mm, the heaviest cover-to-length ratio on this shelf
   • No declaration of performance number, where two listings on this shelf give one

   Best for: A 150 mm pipe passing a wall at a single point, where 460 mm of cover is enough on its own

   Check price on Amazon
5.

   FEUER CAMPUS Radiation Shield, Ø 150 mm, 50 cm

   Half a metre of 2 mm DC01 steel around a Ø 150 mm pipe, with its CE certificate number printed — six published lines and six facts.

   Diameter

   150 mm

   Length

   50 cm

   Wall thickness

   2.0 mm

   Material

   Steel sheet DC01 (St12) · Heat-resistant Senotherm lacquer in black

   Coating

   The maker does not state it.

   Reduced clearance

   Not stated

   Temperature

   Not published

   Fixing

   CE certificate number 0036 CPR 9174 017, printed

   Amazon reference

   B0GPQRDQMY (one reference across 6 Amazon marketplaces)

   EAN

   4255887629509

   • Prints its CE certificate number, which only one other listing on this shelf does
   • Six published lines, every one a fact and none a benefit claim
   • No temperature figure, where four listings in this family publish 600 °C

   Best for: A half-metre passage where the buyer wants the certificate number rather than the adjectives

   Check price on Amazon
6.

   LANZZAS Heat Shield for a 90° Bend, Ø 150 mm

   The only shaped shield on this shelf — formed for a 90-degree elbow, with its full EN 1856-2 designation printed.

   Diameter

   DN Ø 150 mm

   Length

   The maker does not state it.

   Wall thickness

   The maker does not state it.

   Material

   Shaped for a 90° bend, mounted above — the only non-straight shield in this family · Steel, 2 mm thick

   Coating

   Senotherm heat-resistant lacquer, stated to 500 °C, in black metallic or cast grey

   Reduced clearance

   Stated that with this shield the permissible distance to combustible building materials is 400 mm

   Temperature

   The maker does not state it.

   Fixing

   CE, tested to DIN EN 1856-2, stated · Printed in full: 0036 CPR 91405 001 T400 N1 D Vm L01200 G390 NM · Packed in a carton, stated

   Amazon reference

   B089KJHMSF (one reference across 5 Amazon marketplaces)

   EAN

   4251586722411

   • The only shield on this shelf shaped for a bend, which is where a pipe most often runs close to something
   • Prints its full designation under the named standard rather than just claiming certification
   • Its coating figure is 500 °C, where four listings on this shelf state 600

   Best for: A 90-degree elbow passing close to a wall or ceiling, where a straight sleeve covers nothing useful

   Check price on Amazon
